ATT-04-009

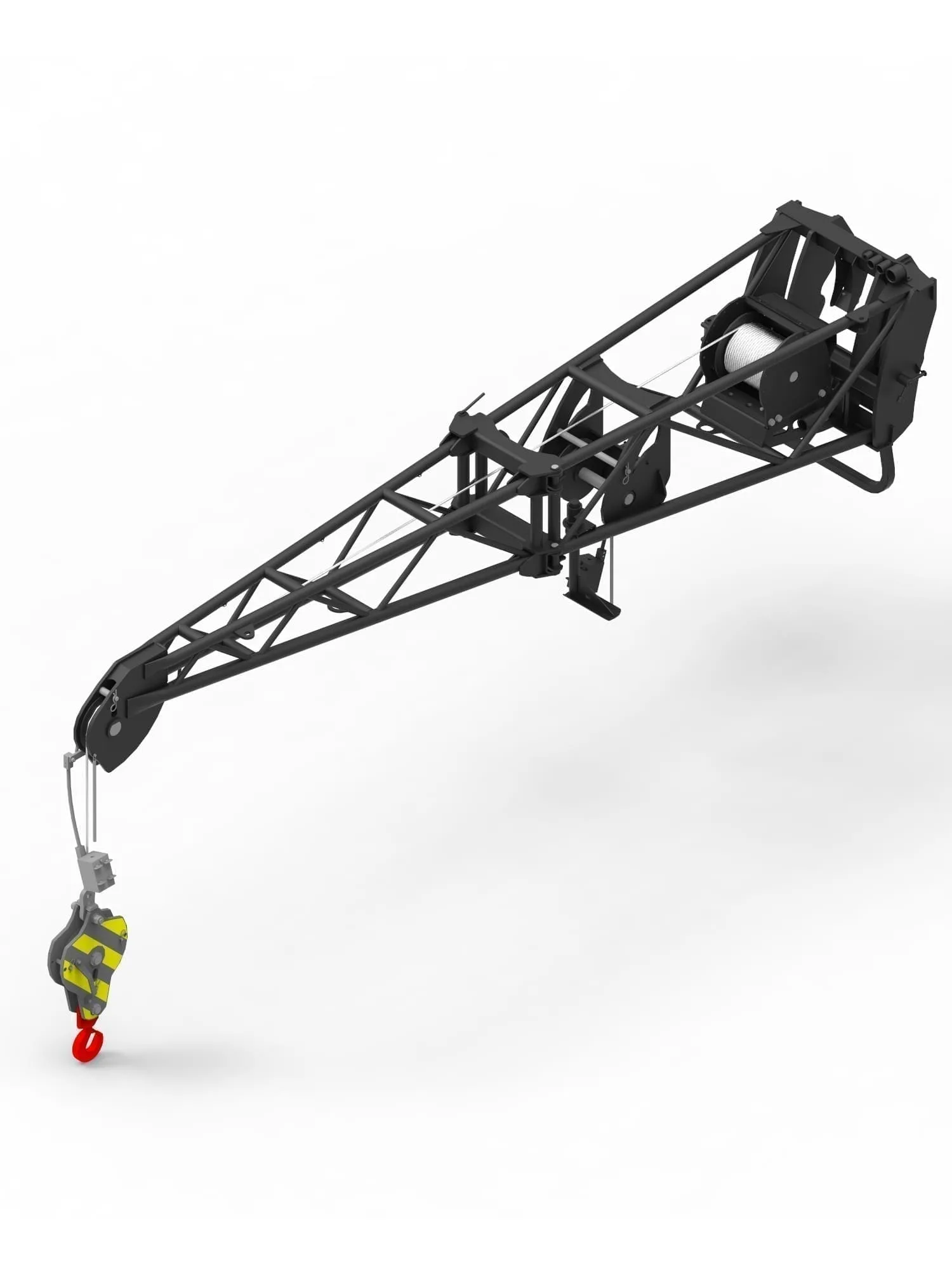

Jib with integrated winch on attachment which can be folded and configured for two capacities. Fully extended, with length of 4.5 metres, it has a single capacity of 1,200 kg; folded, with 1.6 metre length, it has a dual capacity of 3,000 kg. Winch equipped with rope pressure roller and hydraulic limit switch system for rope raising/lowering.
This attachment is available for RTH and TH ranges.
TECHNICAL FEATURES
- Load capacity (closed): 3.000 kg
- Load capacity (open): 1.200 kg
- Length (closed): 1.600 mm
- Length (open): 4.500 mm
- Cable diameter: 10 mm
- Single pull cable length: 48 mm
- Double pull cable length: 25 mm
- Single pull cable extension rate: 48 m/min
- Double pull cable extension rate: 24 m/min
- Automatic accessory recognition: Yes
