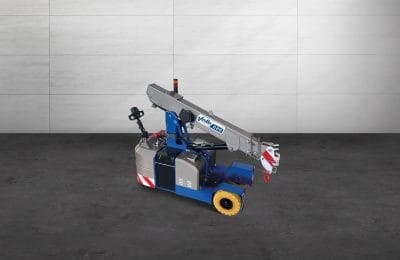

Valla Manual Crane 22E

The Valla 22E is a 100% Electric Manual crane. Its narrow design allows it to easily be guided through standard double doorways, while it can safely lift up to 2.25 ton. Max working height of 4.8 m working radius of 2.7m. The Valla 22E can be fitted with non-marking tyres for operation in clean environments. With a 48V – 200Ah Battery, rear-wheel drive and rear steering the Valla 22E is easily maneuverable and efficient machine.

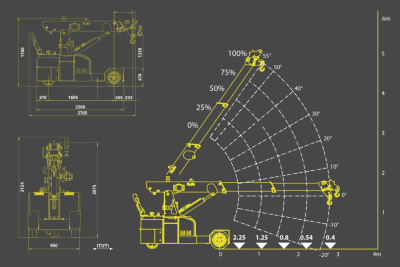

  • Max Lifting capacity:  2250kg
  • Max Working height: 4.80 m
  • Capacity at maximum height: 800 kg
  • Reach: 2.7 m
  • Power: Electric Battery 48V – 200 Ah
  • Height: 1760 mm
  • Length: 2260 mm
  • Width: 950 mm
  • Unladen weight: 1970 kg
